Eurotherm EA51-21370 Schneider Electric Medium Torque Non-Spring Return Actuator Barber Colman EA51-21370-000-0-00 Obsolete

Eurotherm EA51-21370 Datasheet (PDF)

Eurotherm EA51-21370 Manual (PDF)

90 Degree Travel Limit, 12 sec travel time, 60 in-lbs torque, 4-20mA Input, rain tight housing NEMA 4 cover, 120Vac/60Hz, 100 Ohm slidewire feedback


This unit went OBSOLETE October 11, 2023, but we can still build it in house.

Please call (800-852-8324) or email (sales@htsei.com) for more information.

SKU: EA51-21370

Description

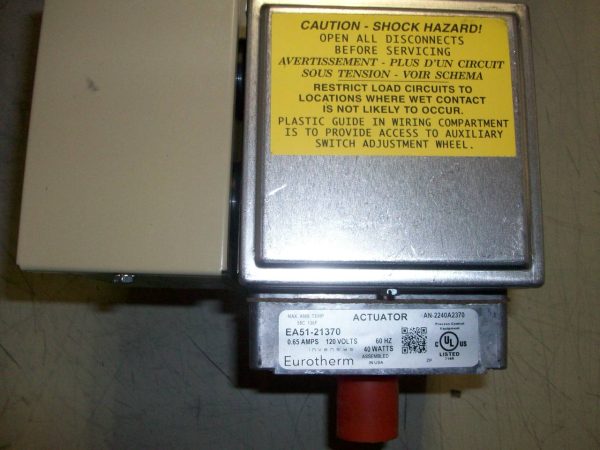

Eurotherm EA51-21370 Schneider Electric Medium Torque Non-Spring Actuator

Eurotherm EA51-21370 Datasheet (PDF)


This unit went OBSOLETE October 11, 2023, but we can still build it in house.

Please call (800-852-8324) or email (sales@htsei.com) for more information.


Barber Colman Old Model #: EA51-21370-000-0-00



90 Degree Travel Limit, 12 sec travel time, 60 in-lbs torque, 4-20mA Input, rain tight housing NEMA 4 cover, 120Vac/60Hz, 100 Ohm slidewire feedback



The Eurotherm EA51-21370 medium torque actuators are ideal for proportional positioning of a fuel valve, butterfly valve, damper and similar applications.

Units are available with either fixed or adjustable speed. Timing of adjustable speed units can be increased (decreasing the speed) by turning a slotted adjustment screw on the outside of the case. Adjust range is approximately ten times rated. Standard features include a 100Ω feedback slidewire and a single SPDT switch.

All models, except those with transformers, are UL/cUL listed.

The EA51-21370 are compatible with the VB-7000 and VB-9000 valves.



Specifications
180 degree stroke
Yes
360 degree stroke
No
4-20mA Input
Optional
90 degree stroke
Yes
Auxiliary Switches
1 Standard additional 2 or 4 switches optional
CE
No
CUL or CSA
Yes
Linear Stroke
No
NEMA Rating
NEMA 4 (Selected Models)
Output Types
24V ac 60Hz 120V dc 60Hz 120V ac 50Hz 240V ac 60Hz 240V ac 50Hz
Position Signal
Potentiometer optional
Torque
60-220lb-in
UL Listed
Yes

View ALL Eurotherm EA50 Series Actuators: EA51, EA52, EA53, EA54, EA55, EA56, EA57, EA58

Additional information

Weight 12 lbs
Dimensions 13 × 11 × 10 in
