Description

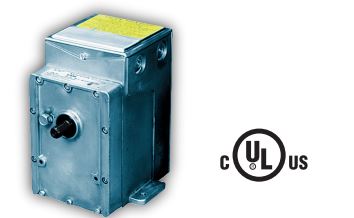

Eurotherm EA51-370 Schneider Electric Medium Torque Non-Spring Actuator
Eurotherm EA51-370 Datasheet (PDF)
Barber Colman Old Model #: EA51-00370-000-0-00
90 Degree Travel Limit, 12 sec travel time, 60 in-lbs torque, NEMA 4 cover, 120Vac/60Hz, 100 Ohm slidewire feedback
The Eurotherm EA51-370 medium torque actuators are ideal for proportional positioning of a fuel valve, butterfly valve, damper and similar applications.
Units are available with either fixed or adjustable speed. Timing of adjustable speed units can be increased (decreasing the speed) by turning a slotted adjustment screw on the outside of the case. Adjust range is approximately ten times rated. Standard features include a 100Ω feedback slidewire and a single SPDT switch.
All models, except those with transformers, are UL/cUL listed.
The EA51-370 are compatible with the VB-7000 and VB-9000 valves.
| Specifications | |
| 180 degree stroke |
Yes
|
| 360 degree stroke |
No
|
| 4-20mA Input |
Optional
|
| 90 degree stroke |
Yes
|
| Auxiliary Switches |
1 Standard additional 2 or 4 switches optional
|
| CE |
No
|
| CUL or CSA |
Yes
|
| Linear Stroke |
No
|
| NEMA Rating |
NEMA 4 (Selected Models)
|
| Output Types |
24V ac 60Hz 120V dc 60Hz 120V ac 50Hz 240V ac 60Hz 240V ac 50Hz
|
| Position Signal |
Potentiometer optional
|
| Torque |
60-220lb-in
|
| UL Listed |
Yes
|
