Description

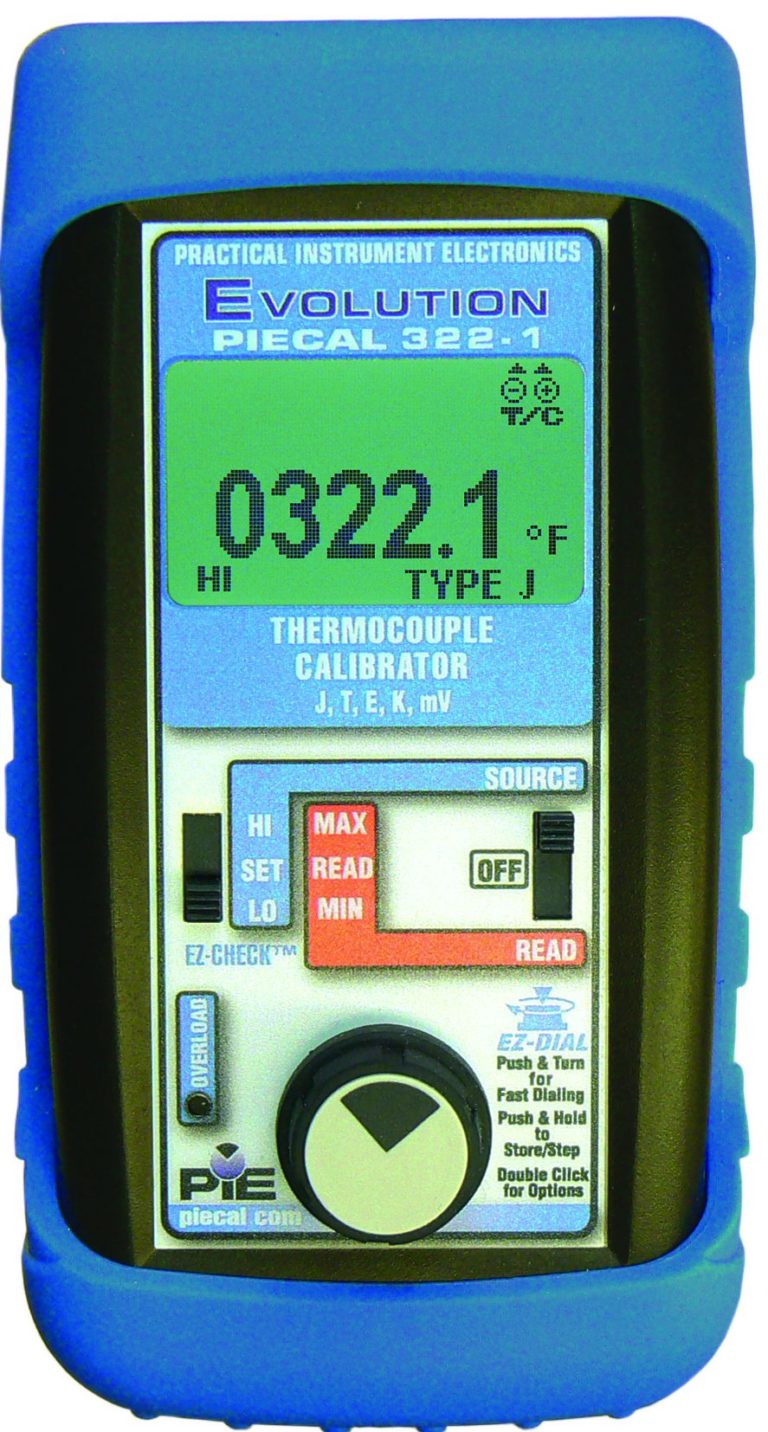

PIE 322 Practical Instrument Electronics 4 Type Thermocouple Calibrator

PIE 322 Datasheet (PDF)



Features:

• Source and Read Four T/C Types plus mV
  J, K, T & E, -13.000 to 80.000 mV



• Resolution to 0.1 °F & °C; Accurate to 0.2°
  Cold Junction Sensor accurate to 0.10 °C



• Faster Calibrations
  Instantly select three outputs with EZ-CHECK switch
  Easily find trip points with two speed EZ-DIAL knob & Automatic Stepping



• Easily Change T/C Types & Scale
  Double click to select T/C type & °F & °C



• Easy-to-Read Display
  Turn on the backlight to read in dark areas of the plant



• Use in the Plant, Field or Shop
  Includes Rubber Boot and mV Test Leads
  Low profile switches resist accidental damage

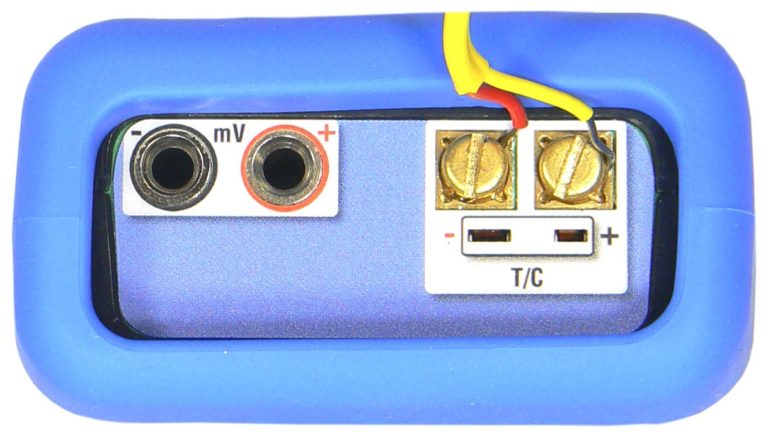

  Brass screws for T/C wires plus mini T/C socket



• Simple “No Tool” Battery Changes
  Four inexpensive “AA” batteries



• Optional Accessories
  Wire & Mini T/C Plug: J, T, E, K (020-0202)



PIE 322 Additional Information:

Weight	2 lbs
Dimensions	7.75 × 5.25 × 4.5 in
