Description
REED R2450SD-KIT6 Data Logging Thermometer with 2 Oven/Freezer Thermocouple Probes
Reed R2450SD-KIT6 Datasheet (PDF)
Real-time data logger with integrated SD memory card measures/records up to 4 separate temperature measurements simultaneously as well as temperature differential. Accepts Type K, J , R, S, E, T thermocouples and RTD probes.
The R2450SD-KIT6 includes a Data Logging Thermometer (R2450SD) and 2 Type-K versatile air probes (R2980) specifically designed to monitor ambient air temperatures in various food service equipment including ovens, refrigeration units and freezers.
REED R2450SD Offers
The R2450SD features Data hold, Max/Min functions, and an easy-to-read backlit LCD display. Using a SD card (max 16GB), a user can manually record up to 99 readings or automatically by selecting a desired sampling rate from 1 to 3600 seconds. Quickly generate an Excel file with raw data, all without the use of software. Optional accessories include a tripod and AC adapter for continuous long-term monitoring on up to 4 separate channels.
Features
- Displays up to 4 separate measurements simultaneously
- Accepts Type K, J , R, S, E, T thermocouples and RTD probes
- Temperature differential (T1-T2), Max/Min and Data hold functions
- User selectable °C, °F
- Real-time data logger with integrated SD memory card
- User selectable sampling rate from 1 to 3600 seconds
- Easy-to-read backlit LCD display
- Tripod mount for long-term monitoring
- Low battery indicator and auto shut off
REED R2450SD Specifications
| Measurement Range | |
| Type K | -148 to 2372°F (-100 to 1300°C) |
| Type J | -148 to 2102°F (-100 to 1150°C) |
| Type T | -148 to 752°F (-100 to 400°C) |
| Type E | -148 to 1652°F (-100 to 900°C) |
| Type R | 32 to 3092°F (0 to 1700°C) |
| Type S | 32 to 2732°F (0 to 1500°C) |
| RTD Pt100 Ohm | -327.9 to 1562°F (-199.9 to 850°C) |
| Accuracy | |
| Type K | -148.0 to -58.1°F, ±(0.4% + 1.8°F) -58.0 to 999.9°F, ±(0.4% + 1°F) 1000 to 2372°F, ±(0.4% + 2°F) -100.0 to -50.1°C, ±(0.4% + 1°C) -50.0 to 999.9°C, ±(0.4% + 0.5°C) 1000 to 1300°C, ±(0.4% + 1°C) |
| Type J | -148.0 to -58.1°F, ±(0.4% + 1.8°F) -58.0 to 999.9°F, ±(0.4% + 1°F) 1000 to 2102°F, ±(0.4% + 2°F) -100.0 to -50.1°C, ±(0.4% + 1°C) -50.0 to 999.9°C, ±(0.4% + 0.5°C) 1000 to 1150°C, ±(0.4% + 1°C) |
| Type T | -148.0 to -58.1°F, ±(0.4% + 1.8°F) -58.0 to 752.0°F, ±(0.4% + 1°F) -100.0 to -50.1°C, ±(0.4% + 1°C) -50.0 to 400.0°C, ±(0.4% + 0.5°C) |
| Type E | -148.0 to -58.1°F, ±(0.4% + 1.8°F) -58.0 to 999.9°F, ±(0.4% + 1°F) 1000 to 1652°F, ±(0.4% + 2°F) -100.0 to -50.1°C, ±(0.4% + 1°C) -50.0 to 900.0°C, ±(0.4% + 0.5°C) |
| Type R | 32 to 3092°F, ±(0.5% + 5°F) 0 to 1700°C, ±(0.5% + 3°C) |
| Type S | 32 to 2732°F, ±(0.5% + 5°F) 0 to 1500°C, ±(0.5% + 3°C) |
| RTD Pt100 Ohm | -327.0 to 999.9°F, ±(0.4% + 1.8°F) 1000 to 1562°F, ±(0.4% + 2°F) -199.9 to 850.0°C, ±(0.4% + 1°C) |
| Resolution | |
| Type K | 0.1°F (0.1°C) 1°F (1°C) ≥ 1000° |
| Type J | 0.1°F (0.1°C) 1°F (1°C) ≥ 1000° |
| Type T | 0.1°F (0.1°C) |
| Type E | 0.1°F (0.1°C) 1°F ≥ 1000° |
| Type R | 1°F (1°C) |
| Type S | 1°F (1°C) |
| RTD Pt100 Ohm | 0.1°F (0.1°C) 1°F ≥ 1000° |
| General Specifications | |
| Resolution | 0.1 or 1°F/°C |
| Type | 4-Channel Thermocouple, 2-Channel RTD |
| Response Time | 1x/second |
| Display | Quad Display, LCD |
| Backlit Display | Yes |
| Data Hold | Yes |
| Min | Yes |
| Max | Yes |
| Differential Measurement (T1-T2) | Yes |
| Datalogging Capabilities | Yes |
| Real-Time Clock and Date Stamp | Yes |
| Selectable Sampling Rate | Yes (1, 2, 5, 10, 30, 60, 120, 300, 600, 1800, 3600 seconds) |
| External Memory | Yes, expandable up to 16GB with SD card (optional) |
| Auto Shut-off | Yes (after 10 minutes/off) |
| Kick Stand | Yes |
| Tripod Mountable | Yes |
| Low Battery Indicator | Yes |
| Power Supply | 6 x AA Batteries or AC Adapter (optional) |
| Data Output | Yes (RS-232) |
| Product Certifications | CE |
| Operating Temperature | 32 to 122°F (0 to 50°C) |
| Storage Temperature | 14 to 140°F (-10 to 60°C) |
| Operating Humidity Range | Less than 85% RH |
| Dimensions | 7.0 x 2.7 x 1.8″ (177 x 68 x 45mm) |
| Weight | 0.6lbs (268g) |

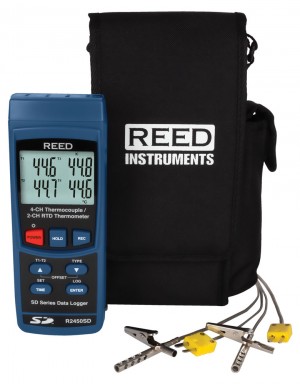

REED R2450SD-KIT6 Data Logging Thermometer with 2 Oven/Freezer Thermocouple Probes Includes
REED R2450SD Data Logging Thermometer
Real-time data logger with integrated SD memory card measures/records up to 4 separate temperature measurements simultaneously as well as temperature differential. Accepts Type K, J , R, S, E, T thermocouples and RTD probes.
REED R2980 Type K Air Oven/Freezer Thermocouple Probe
Versatile air probe specifically designed to monitor ambient air temperatures in various food service equipment including ovens, refrigeration units and freezers. The R2980 features a stainless-steel shield to protect the sensor from touching surfaces and conveying a false measurement.
Ideal Applications for the REED R2450SD
- Medical
- Pharmaceutical
- Environmental monitoring
- Industrial and commercial temperature applications
- R&D and educational establishments
- Food service
